Syscom 421S 4-Transmitter 1800' A V Transmission System

Syscom 421S

• 550 m (1800') Wireless Video & Audio Transmission System
• Key Features:
• 4 Tx Synchronized A&V Transmission
• Up to 550 m (1800') Range
• 0.07s Latency
• SDI + HDMI Input & Output
• 1080p Full HD
• RS422 / RS485 / LAN Control
• Tally Control
• RTSP Streaming
• Maximized Multi-Cam Experience
• Up to 4x Tx Synchronized A&V Transmission
• Up to 4x transmitters on the same RF channel with strong anti-interference capability.

0.07s Latency with Up to 550 m (1800') Range
0.07s lowest achievable latency with up to 550 m (1800') reliable transmission range especially designed for livestream and other multi-cam production setups.

SDI + HDMI Inputs and Outputs
Each transmitter with SDI and HDMI input plus 4x SDI and HDMI outputs on the receiver.

Supports RS485 / RS422 / LAN Control
RS485 / RS422 provides the feasibility and convenience to easily control PTZ cameras and switchers.

Supports Tally Lights
Tally lights of the SYSCOM 421S unleash the potential of best production quality for multiple camera setups.

Supports RJ45 Pinout
Supports RJ45 standardized networking interface for ethernet pass-through between the Rx and each Tx, and achieves RTSP streaming.

Wide-Range Applications
One location supports up to 4x systems (16 Tx) for varieties of video production applications, such as weddings, sporting events, concerts, corporate meetings, church services, livestreams, and other events of different sizes.

What's Included

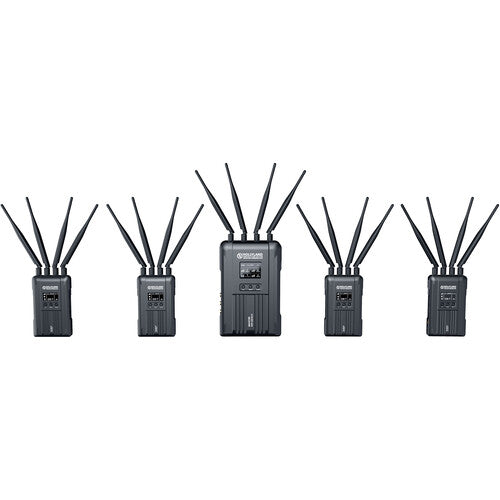

• 4x Transmitters
• Receiver
• 25x 5 GHz Antennas
• 4x Magic Arms (7")
• OTG Cable
• 4x DC Conversion Cables
• 5x RS485/RS422 Interface Cables
• Power Adapter
