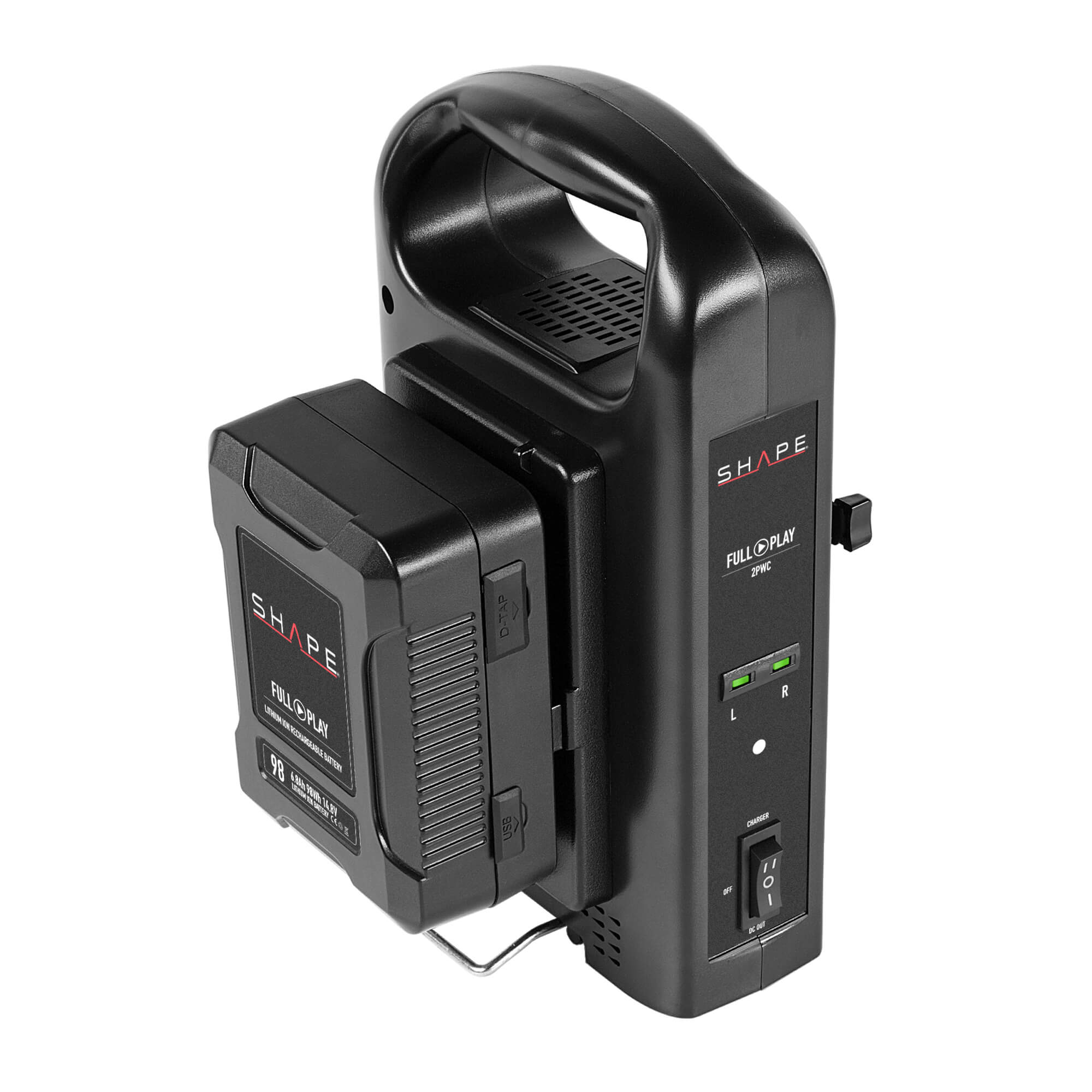

Full Play INtelligent Dual V-Mount Lithium-Ion Battery Charger

The SHAPE FULL PLAY Intelligent 2-Bay Vertical V-Mount Battery Charger can charge two V-Mount batteries simultaneously. Having a vertical profile means this charger takes up a minimum of space when not in use. Connect the 4-pin XLR to your camera or light with the included 4-pin XLR cable and use the charger as a DC power supply, up to 60 watts. The compact vertical design is easy to transport using the top handle and the internal power supply can handle worldwide AC voltages.

• Simultaneous Dual V-Mount Lithium-Ion Battery Charger
• 16.8V 2.5A Charger Output
• 60W, 15V, 4.0A

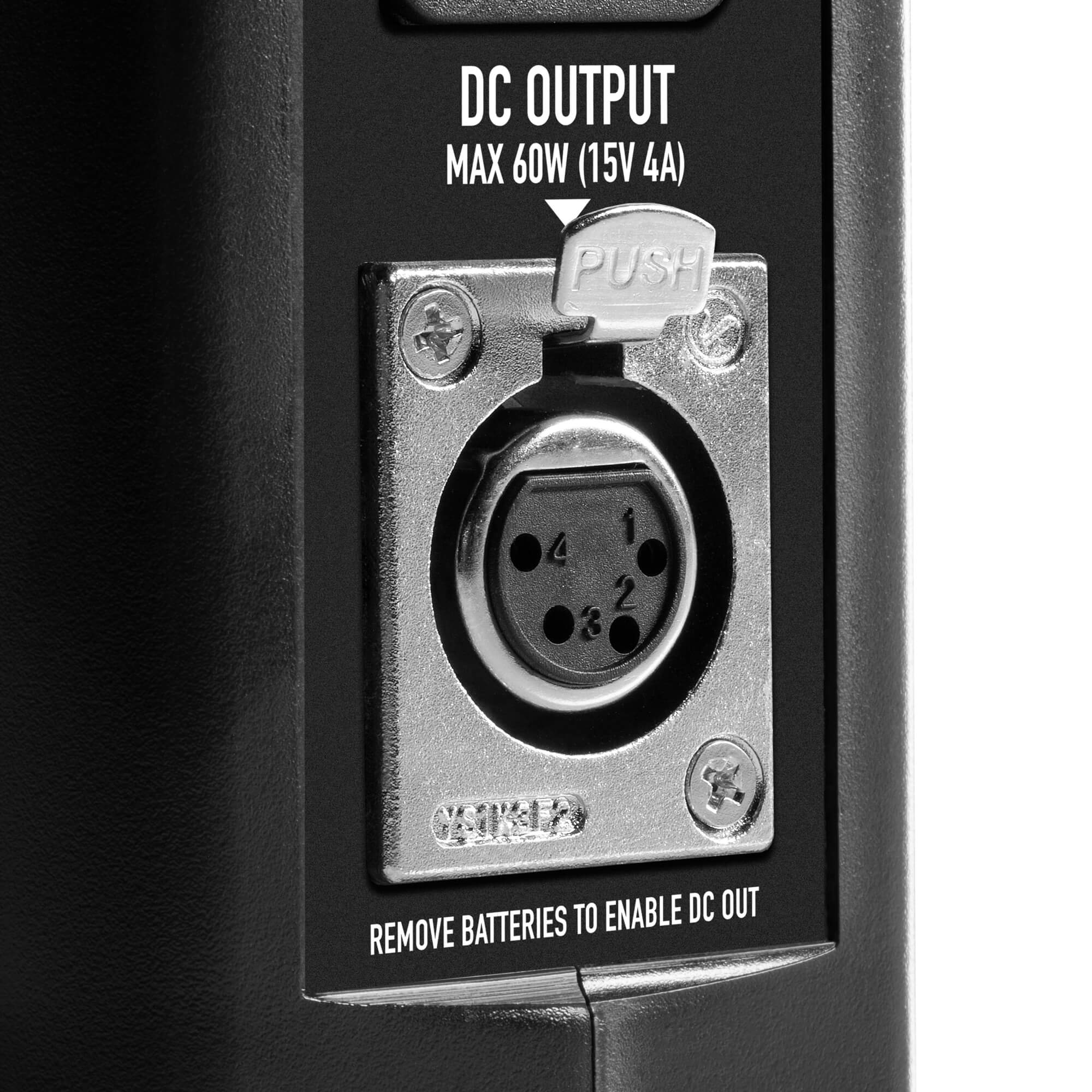

• 4-Pin XLR DC Power Output
• Battery Release Lever
• Lightweight Portable Design with Carry Handle

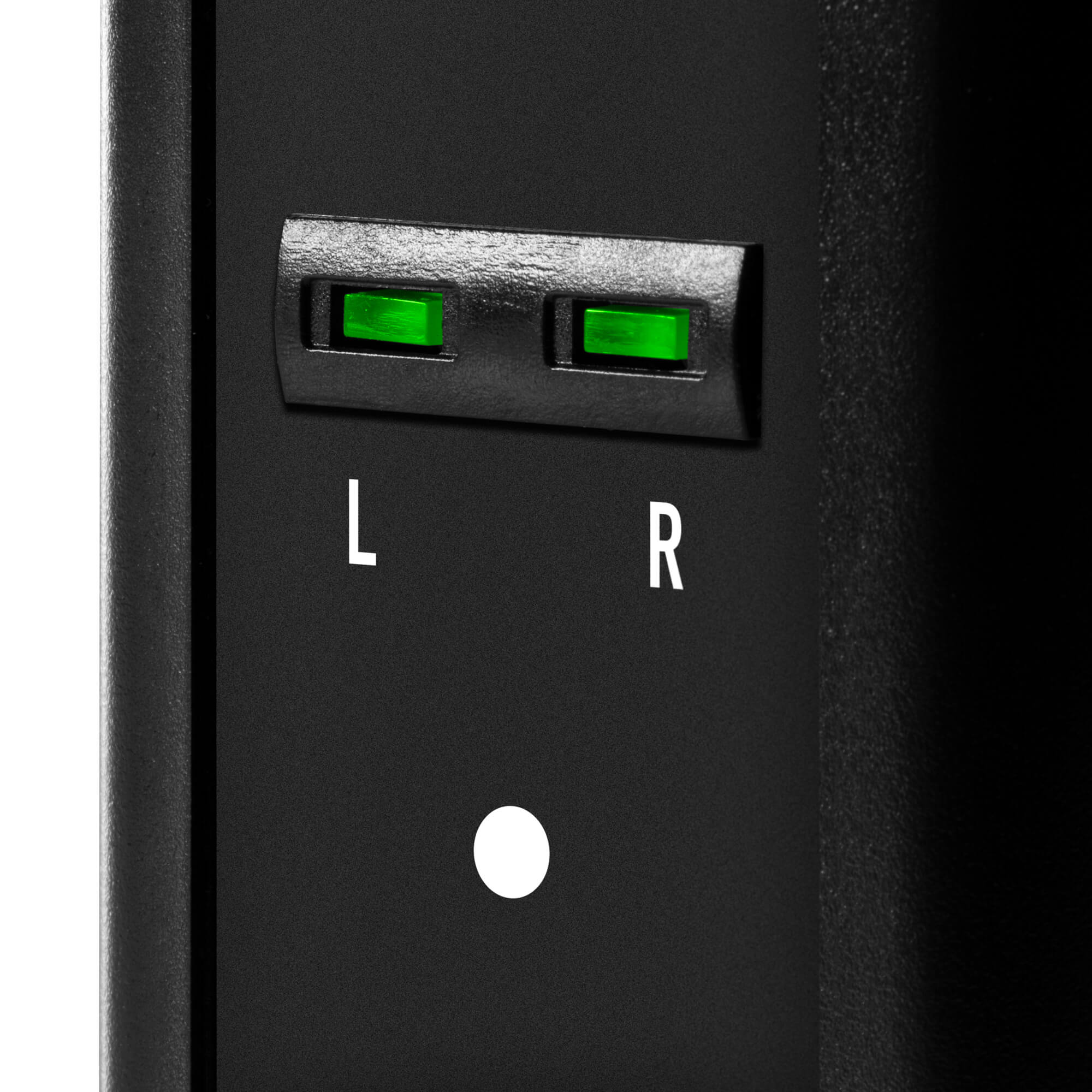

• Light Indicators for Battery Charge Status

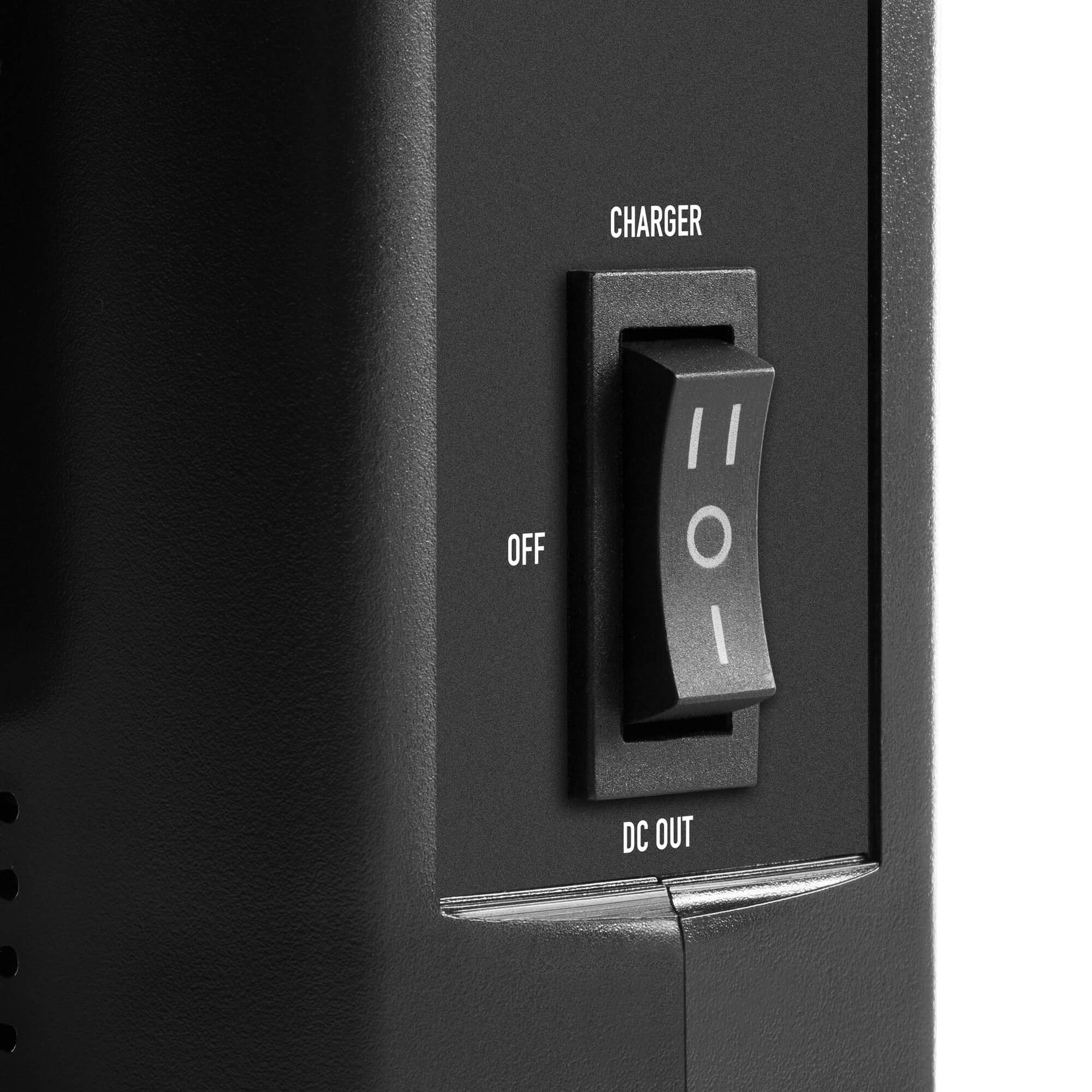

• Charge/DC Out/Off Mode Switch
• 90-242 V, 47-63 Hz, 3.8A AC Power Input

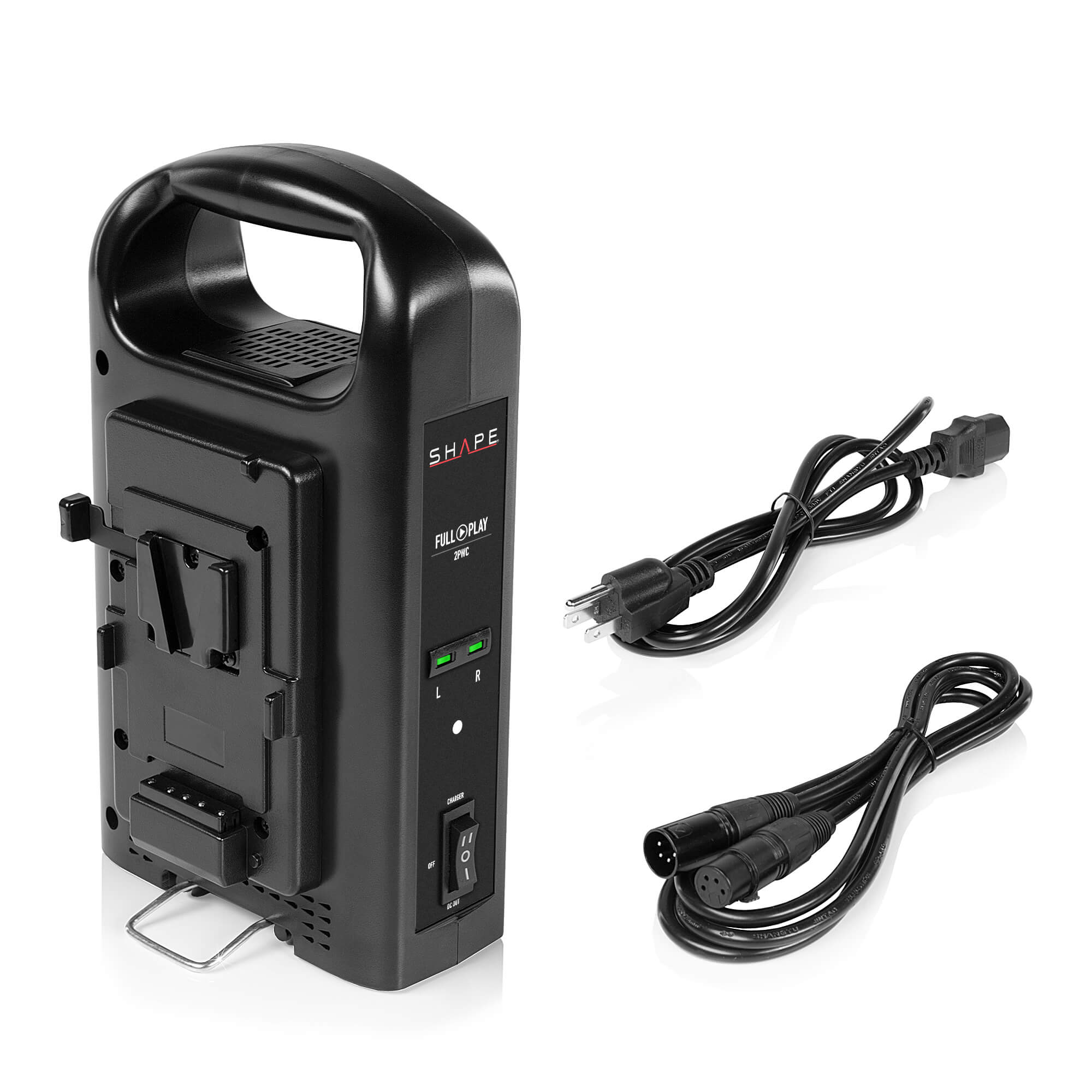

• 4-Pin XLR Male-Female Cable Included for Powering Accessories

CHARGING INSTRUCTIONS

• Plug the power cable into the charger.
• Slide the battery that requires charging onto the charger, ensuring the V-Mount studs are aligned in the corresponding slots. The battery is fully engaged when the latch makes an audible “click” sound.
• Turn on the charging switch on the charger and the indicator light will turn red. The charger will begin charging the battery automatically.
• When the indicator light turns orange, the charging is almost finished.
• When the indicator light turns green, the charging is completely finished.
• Remove the battery by depressing the latch and sliding the battery off the charger. Turn off the charger.

ADAPTER INSTRUCTIONS

• Plug the 4-pin XLR cable into the charger.
• Turn on the adapter switch. When the indicator light turns red, the charger will begin charging the device automatically.

What's in the box
(1) SHAPE FULL PLAY INTELLIGENT DUAL V-MOUNT LITHIUM-ION BATTERY CHARGER
