By DJI Innovations
Ronin-S Focus Motor
Regular price
$225.00
Regular price
Sale price
Unit price
per
Shipping calculated at checkout.
Product SKU:
CP.RN.00000022.02
UPC:
Interest-free financing with Flexiti
See details
Couldn't load pickup availability
Regular price
$225.00
Regular price
Sale price

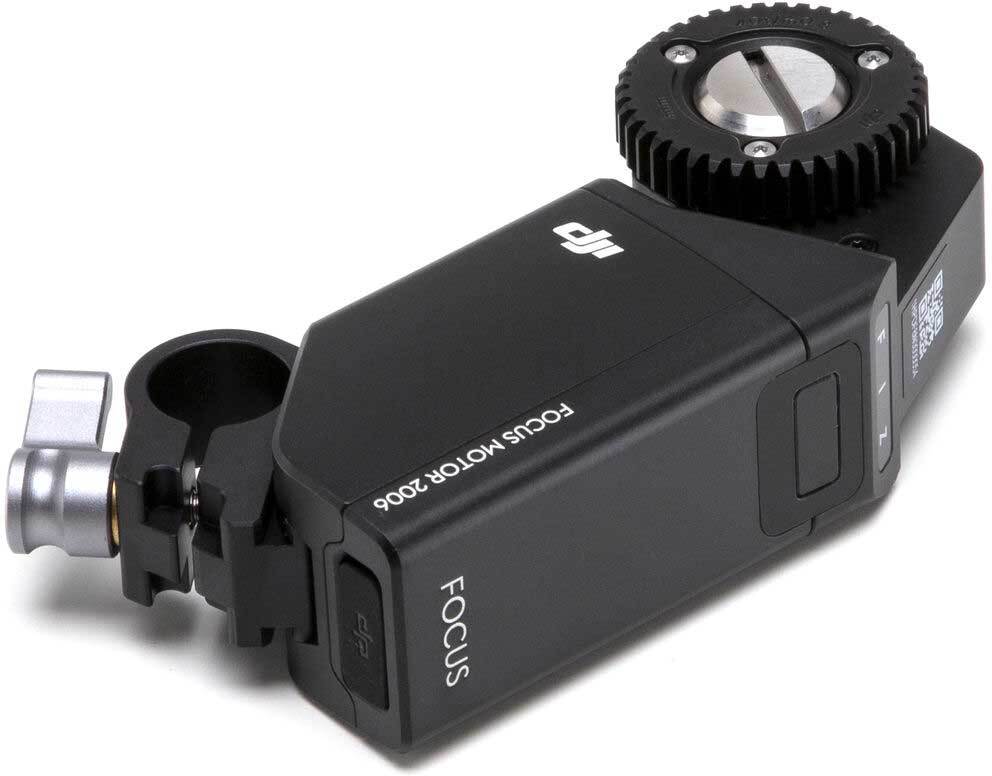

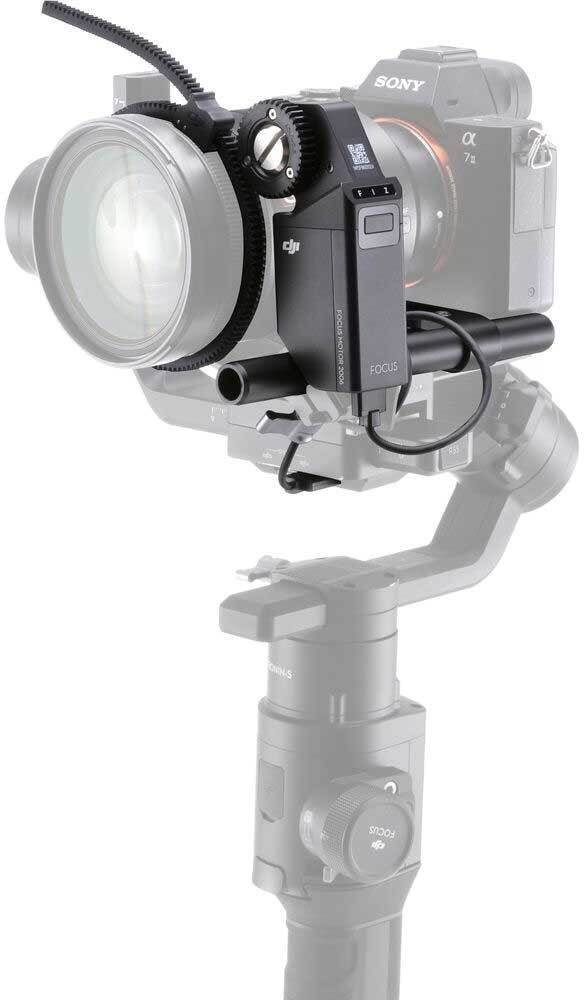

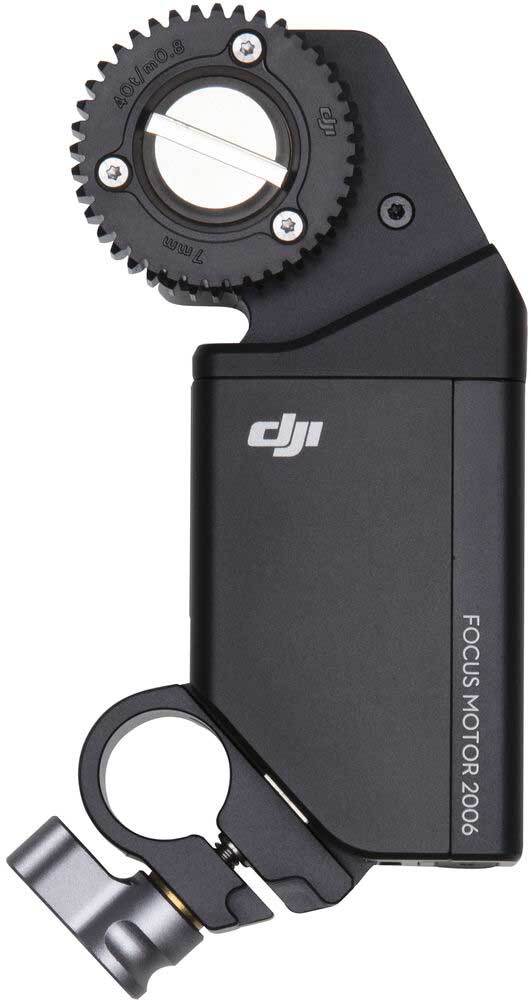

The Ronin-S Focus Motor is used with the Ronin-S Focus Wheel to control the focus, iris, and zoom.

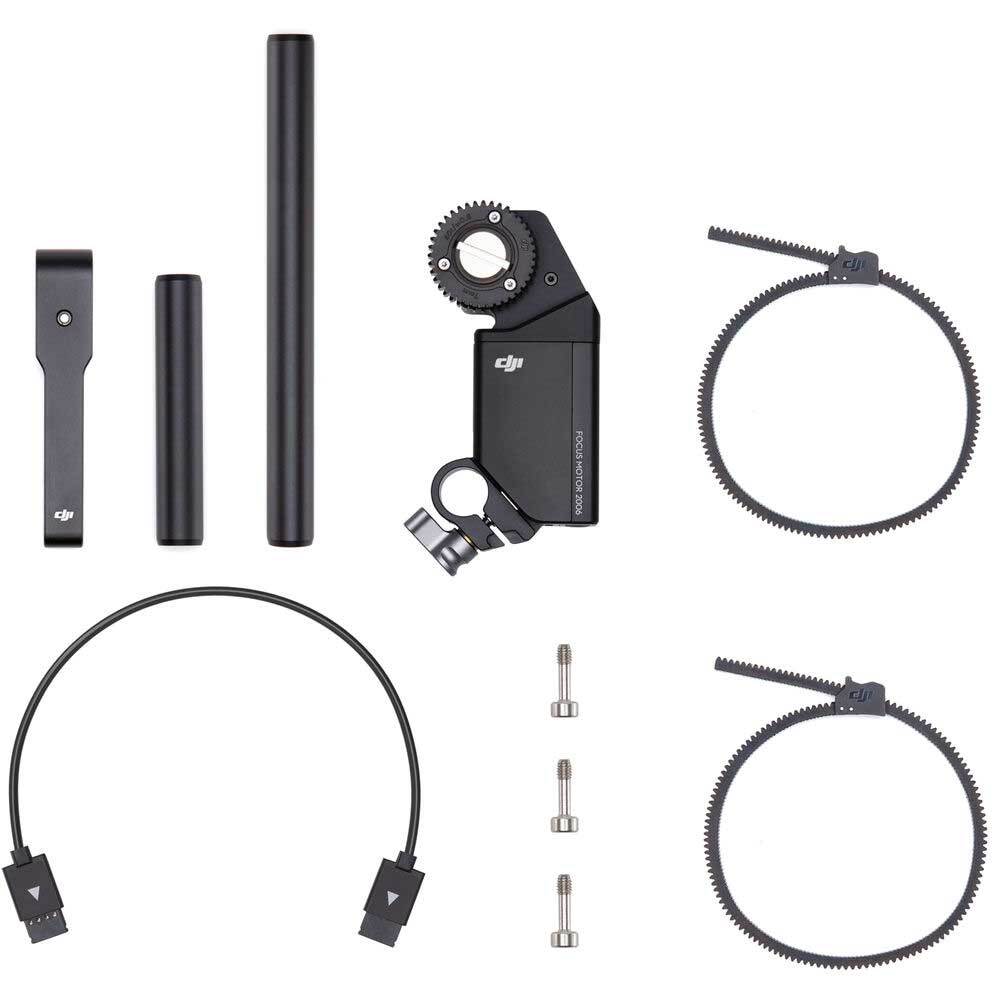

In the Box
In the Box
- Focus Motor × 1

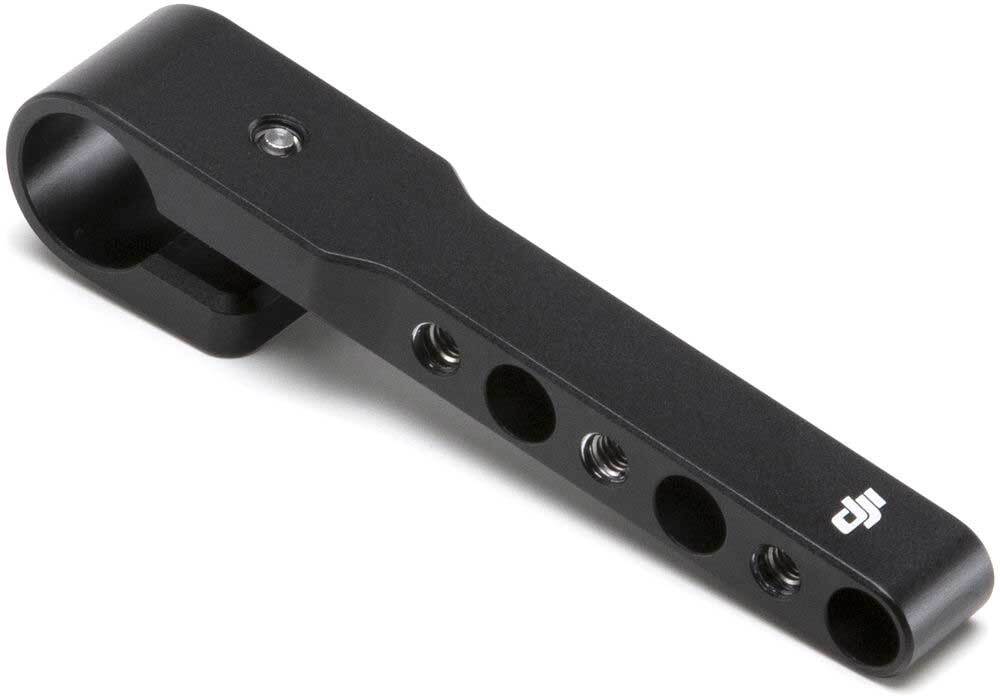

- Rod Mount × 1
- 15 mm Rod × 2
- Screw × 4
- Focus Gear Strip × 2

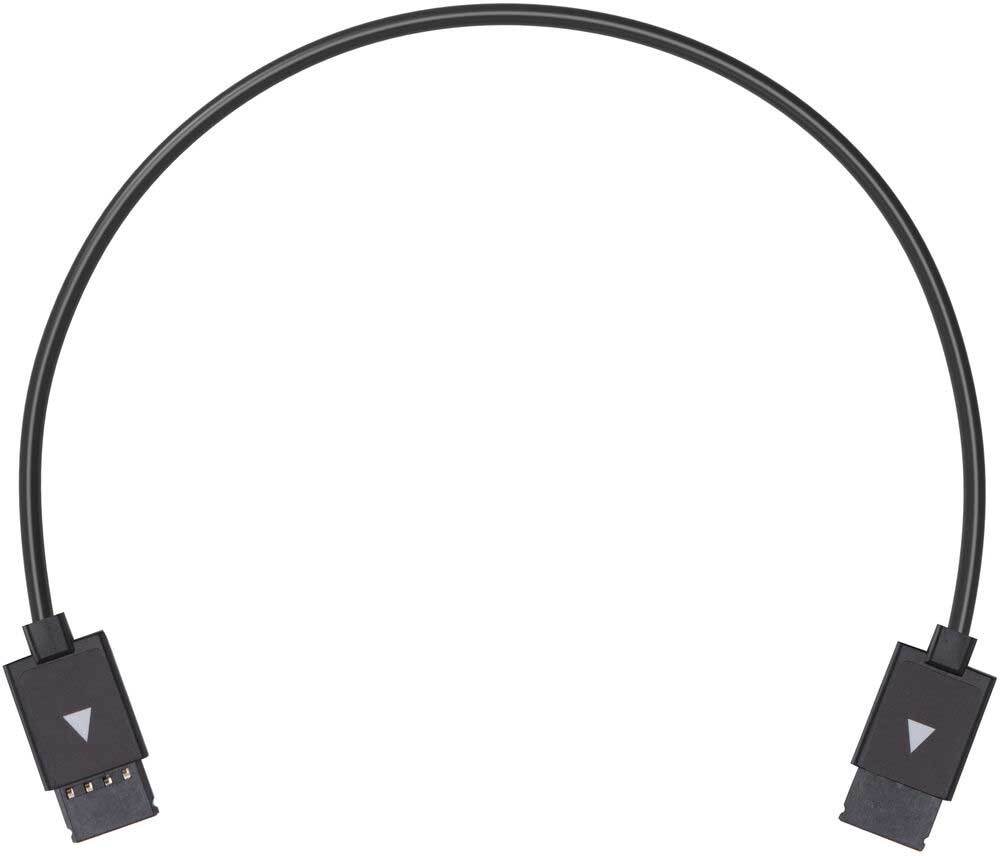

- Power Cable × 1
- Weight: 198 g (power cable included)
- Dimensions: 110 x 53 x 30 mm
- Max. Torque: 0.5 Nm
- Max. Speed: 210 RPM
- Operating Current: Free current: 25 mA (12 V); Stall current: 0.5 A (12 V)
- Operating Voltage: 6-17 V
- Noise: 25 dB
- Rod Clamp Inner Diameter: 15 mm
- Gear: No. of teeth: 40; Module: 0.8
- Operating Temperature: -20 to 55°C
- No. of Teeth: 151
- Module: 0.8
- Diameter: 30 to 110 mm
- Length: 377 mm
Specifications
GENERAL
- Type: Motor
- Brand: DJI Innovations
- Compatibility: DJI Ronin-S
