Mini delta monitor plate
Regular price
$53.90
Regular price
Sale price
Unit price
per
Shipping calculated at checkout.
Product SKU:
MILTA
UPC:
Interest-free financing with Flexiti
See details
Couldn't load pickup availability
Regular price
$53.90
Regular price
Sale price

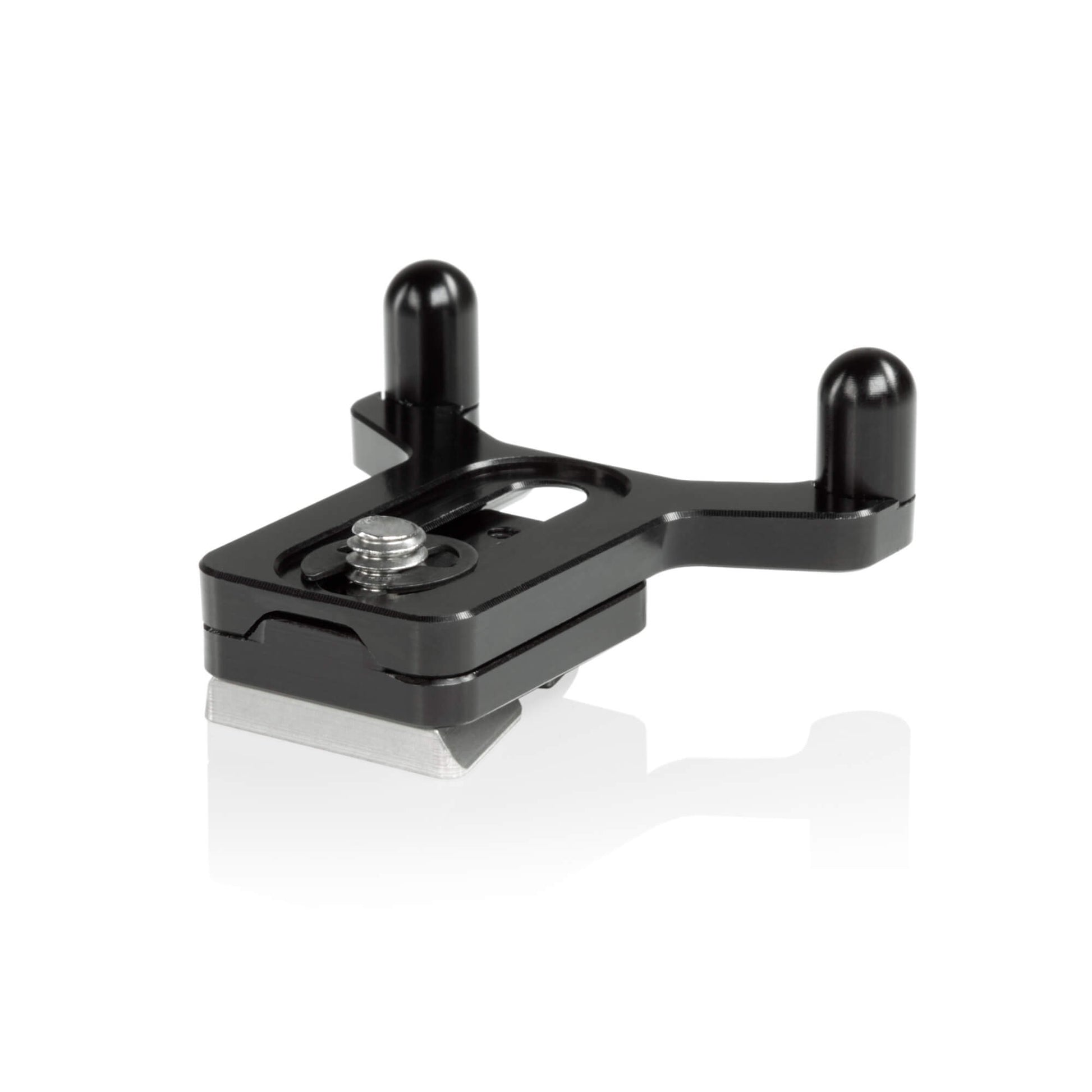

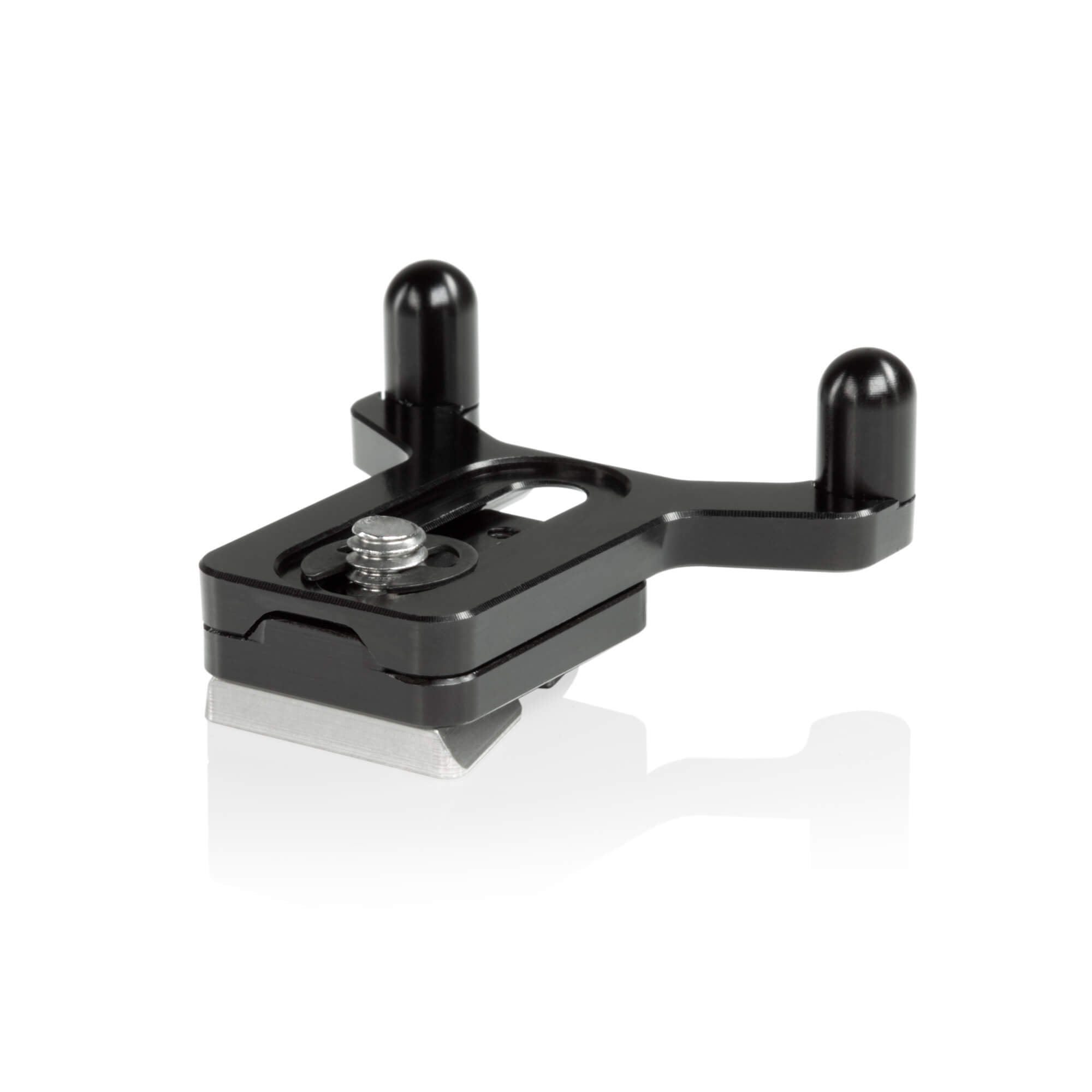

- The Mini Delta Monitor Plate (MILTA) is designed with a Mini Delta Plate and a sliding bracket with 2 anti-rotating support pins to hold your monitor;

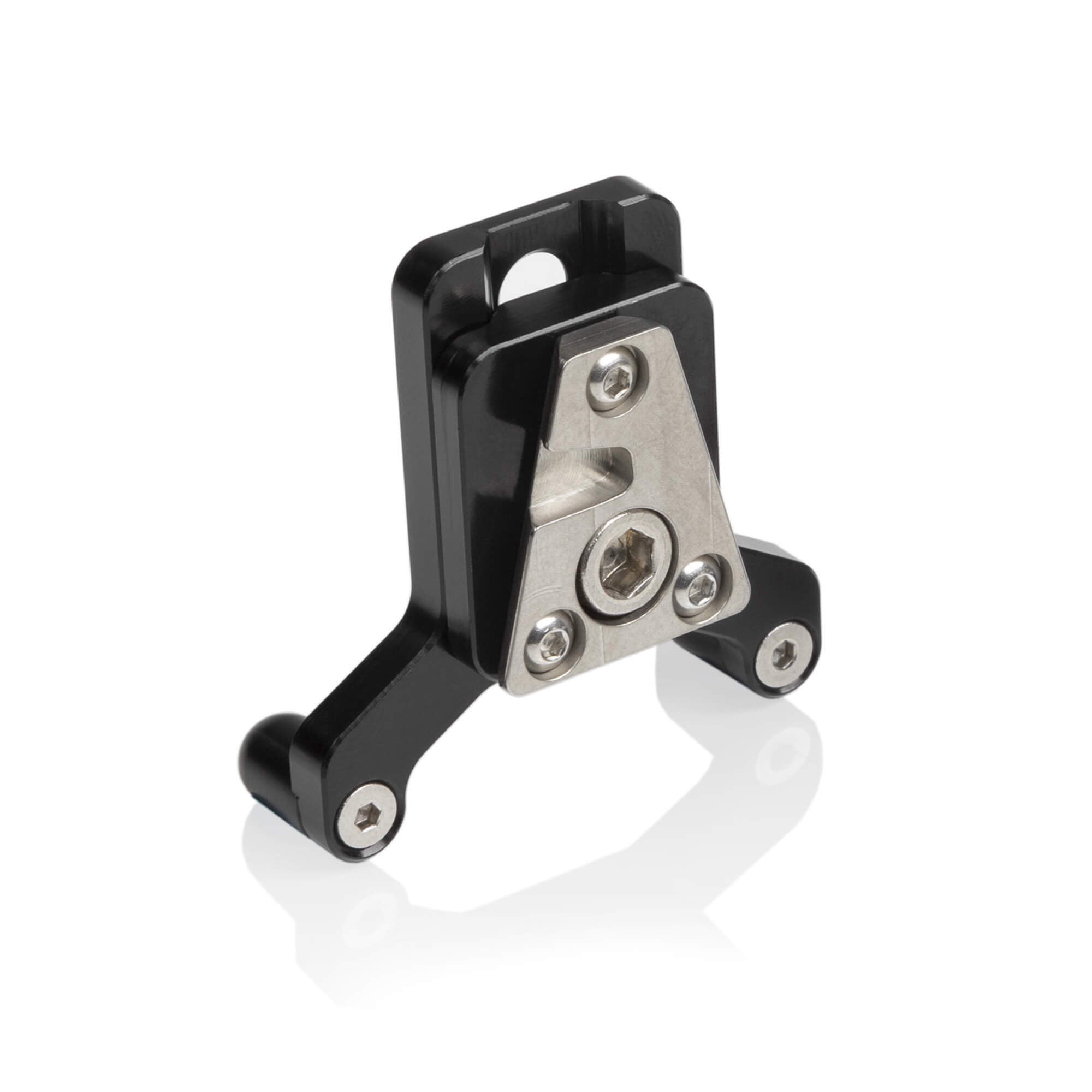

- The Mini Delta Plate (28 mm x 24 mm ) can be installed in both direction on the bracket, allowing you to position the anti-rotating support pins in the front or back of the monitor;
- The 2 anti-rotating support pins are 11 mm height, 8mm diameter and are designed to keep your monitor in place;
- Strongly attach your monitor to the bracket with (1) ¼-20 captive screw and use the sliding feature to rest your monitor onto the anti rotating stoppers (Due to the different thickness of monitors, the sliding plate can be adjusted so the monitor rest on the anti rotating stoppers);
- The sliding distance between the center of the captive screw and the 2 anti rotating stoppers goes from 12mm to 35 mm, meaning that you have 23mm freedom to adjust your monitor to the stoppers.
Specifications
GENERAL
- Type: Monitor Plate
- Brand: Shape
-
Features:
- Perfect to hold and manipulate On-Board monitor

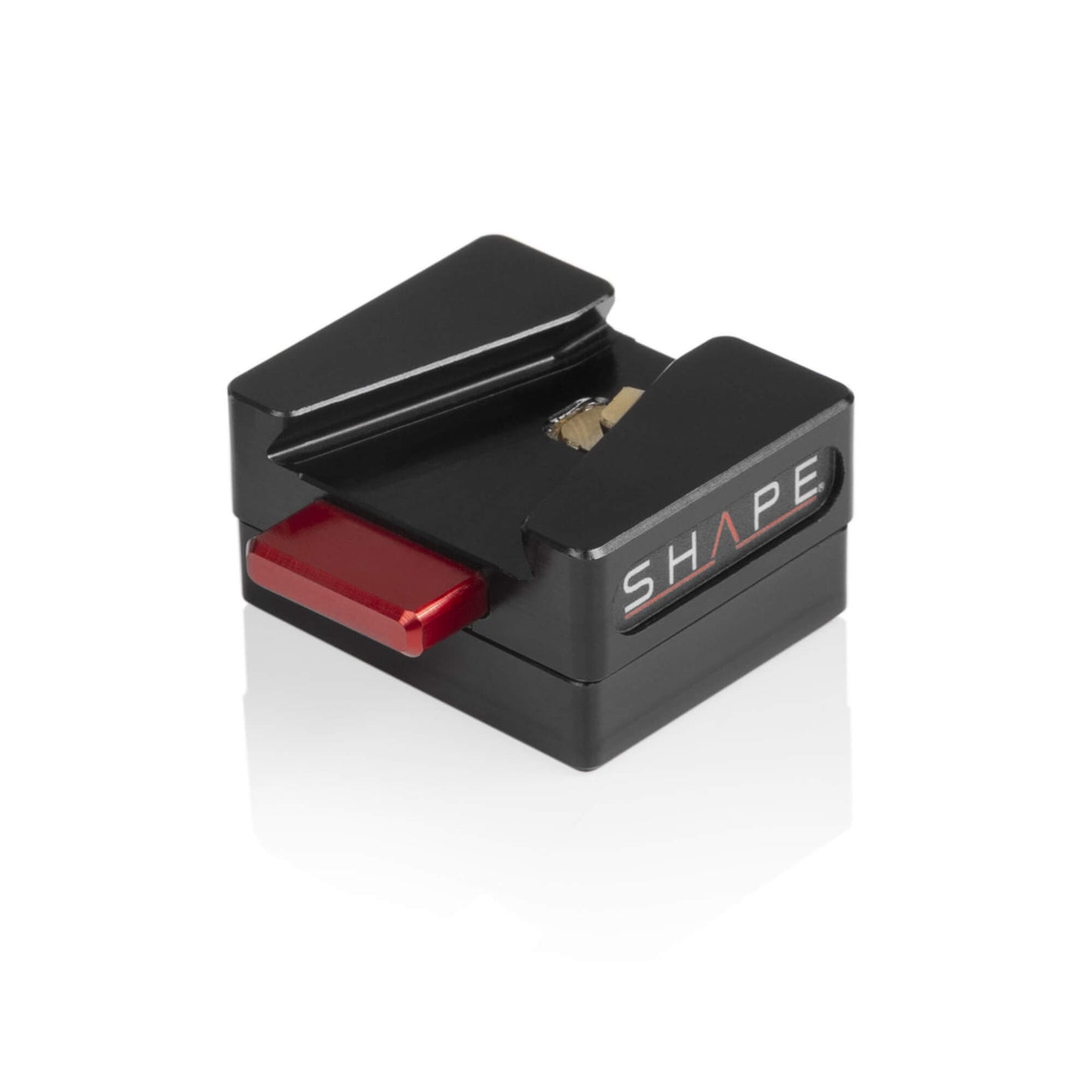

- Designed to fit the SHAPE Mini Quick Release Lock Station (MNQR)
- Compatibility: SHAPE Mini Quick Release Lock Station (MNQR)
Reviews will came here
